ICT industry power supply introduction: AVS power supply module
Advantages: low-voltage high-current power supply, closer to the chip, less loss, higher efficiency

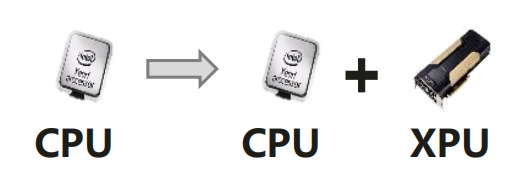

Live broadcast, video, games and other high-calculation power business to promote the development from CPU to CPU + XPU, overclocking Increase from 20% to 200%, dynamic from 2A/uS to 10A/uS
- Small temperature rise, guaranteed 800A full load without derating
- High thermal conductivity of magnetic material, good heat dissipation, full load temperature rise is less than 20 ℃.
- Castle board process ensures that the power mos and output inductors are at the same height, providing a good heat dissipation plane.
- The bottom pad of the module adopts a combination of copper and perforation design to reduce thermal resistance and improve the heat dissipation capability of the T-plane device. Power MOS temperature rise under full load is less than 40℃.
- AVS Module: A voltage regulation module that controls the DC-DC circuitry on the motherboard to provide a stable operating voltage for the CPU. It can control the DC-DC circuit on the motherboard to provide a stable working voltage for the CPU, and at the same time control the voltage change and timing.
- Ensures stable operating voltage for CPU/GPU under overclocking condition.
- Supports up to 16 phases in parallel and up to 800A load.
